Android RK3288 ARM Embedded System Board Support 4G Dual Displpay
RK3288 Android Advertising Motherboard ARM Embedded Industrial Control Digital Signage Support 4G Dual displpay
Overview:
RK3288 Android integrated board, using Rockchip RK3288 quad-core chip solution, support Android5.1 system. Supports the decoding of the popular audio&video formats and images. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display. Support 4K video playing. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.
Feature:
High performance. The RK3288 chip uses the quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-coreand quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
High stability. RK3288 Android integrated board, add their own unique technology in the hardware&software to ensure the stability of the product. To make sure the device 7*24 hours unattended.
High integration. RK3288 Android integrated board integrates Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
Multi interfaces. 6*USB ports, 3*UART ports, can connect more peripheral devices.
Basic Hardware Specifications:
| CPU | Rockchip RK3288 Cortex-A17 Quad core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| ROM | EMMC 8GB/16G/32G/64G optional default: 8GB |
| Display interface | LVDS(single way,6 bit dual-way, 8 bit dual-way), Resolution max 1920x1080, support 7"-84" display |
| EDP interface, Resolution max 4K |
| Screen voltage | Support 3.3V/5V/12V(optional) |
| Touch Screen | I2C interface(support resistive touch, capacitive touch) Support USB IR multi touch,sonic multi touch,optical multi touch |
| Network | RJ45 interface, ethernet 10/100/1000M |
| Wi-Fi 802.11b/g/n, BT4.0 |
| Support 4G LTE |
| Image rotation | Support 0°, 90°, 180°, 270°, manual control or automatic, gravity (optional) |
| RTC | Built in internal battery for Real time clock |
| Interfaces | Support MIPI camera,max 5MP |
| Support USB camera, max 2MP |
| HD out |
| 6*USB HOST(Support usb camera @500w, usb printer, usb stick, mouse, keyboard, standard usb peripherals) |
| Serial ports x 3(1*UART+2*UART or RS232), support external devices(NFC module, printer, card reader etc.) |
| 6*IO |
| TF card slot |
| D classamplifier,5W*2 8R |
| support microphone |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support H.264,MPEG2,VP6,VP8,MVC, 2160P@24FPS decoding, . on-line video such as YouTube, max support 4K,HTML5 playback,Flash10.1 playback |
| Image | Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify |
| Power supply | input:AC100-240V.50-60HZ, output: DC12V 3A |
Basic Software specification:
| OS | Android 5.1 or above |
| Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language | Multi language |
| Recording | Support MP3, WMA, 3gpp, amr,etc, the system comes with an amr format |
| Tool | Calendar |
| Alarm Clock |
| Calculator |
| Note |
| Note |
| Recording |
| Document | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input methods | Standard Andriod keyboard, optional third party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| Email |
| Gmail |
| OS management | APK Installer |
| Original eco-Android system, open root privileges, can be customized product development |
| Real-time remote monitoring, system crash recovery automatically, 7 * 24 hours unattended |
| System setting |
| Global time |
| Support OTA remote upgrade |

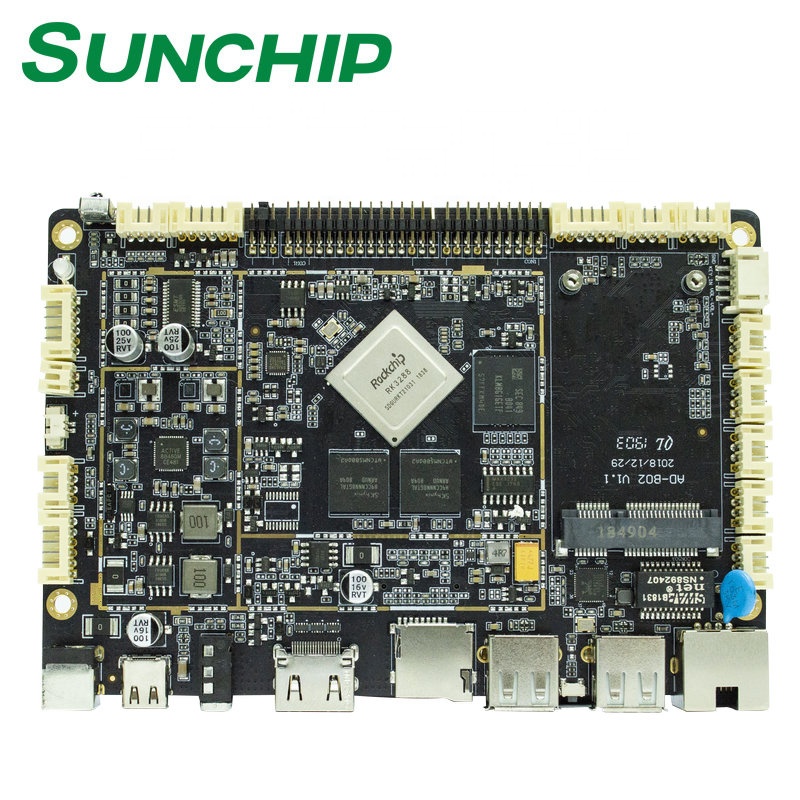

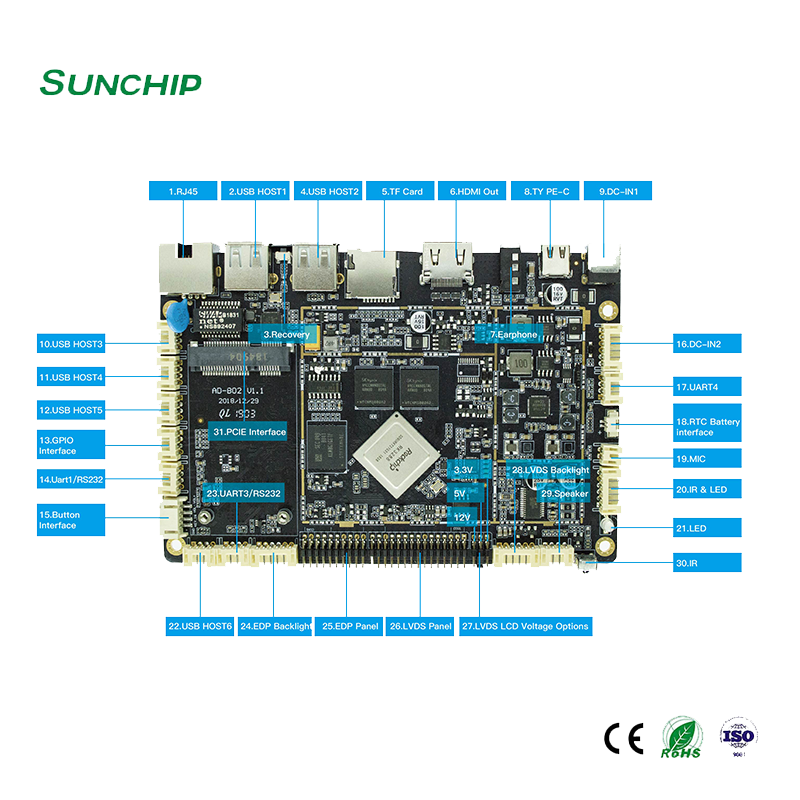

Products images:
